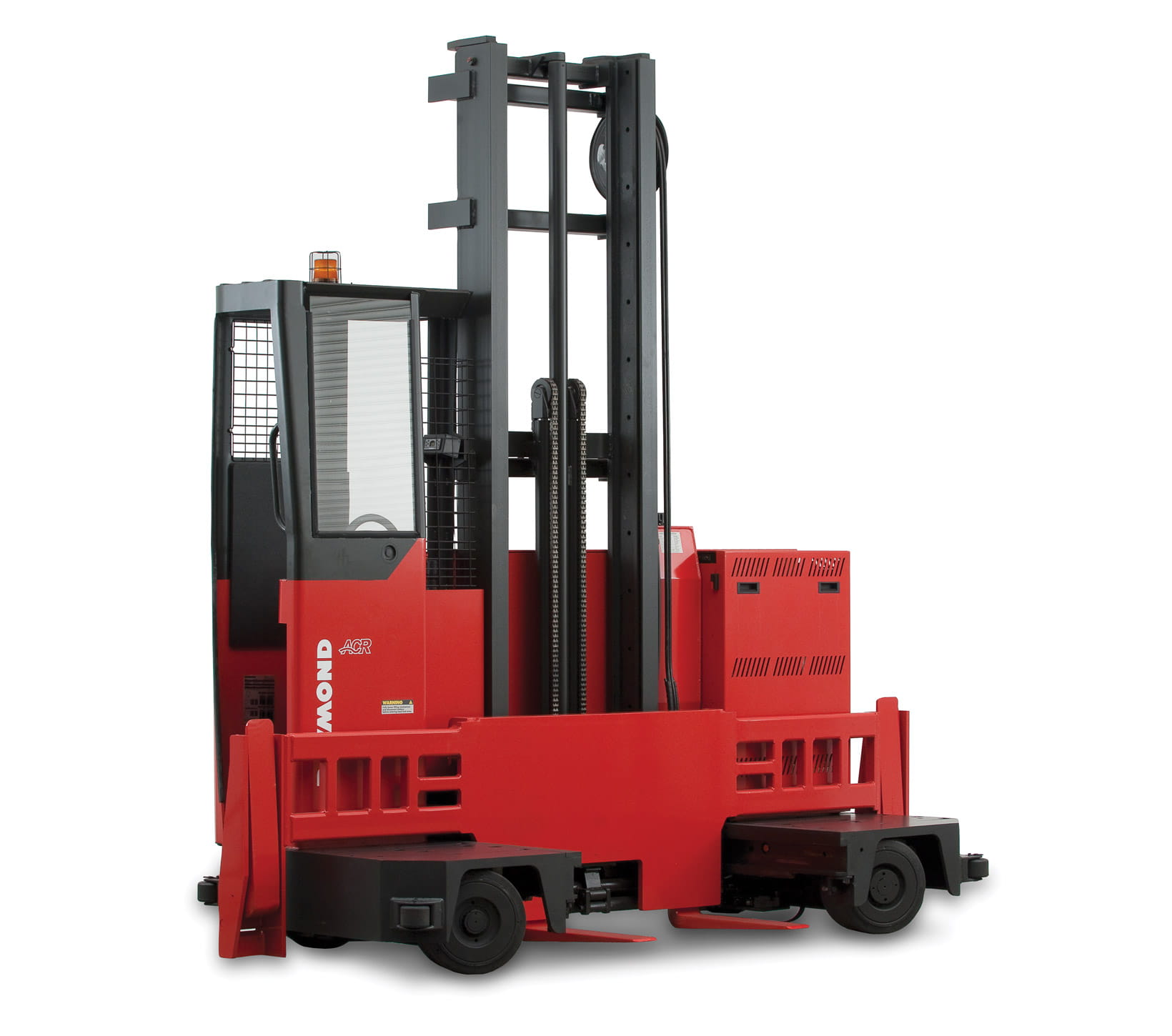

9400 Sideloader Long Load Forklift

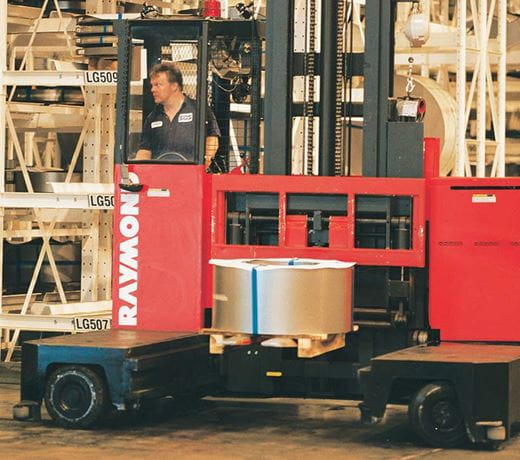

  • Raymond Sideloader Long Load Forklift Crab Steering Feature
    Raymond lift trucks provide maneuverability

    Crab Steering

    Two wheels that steer independently allows sideways travel capability down narrow storage aisles.
    Crab Steering

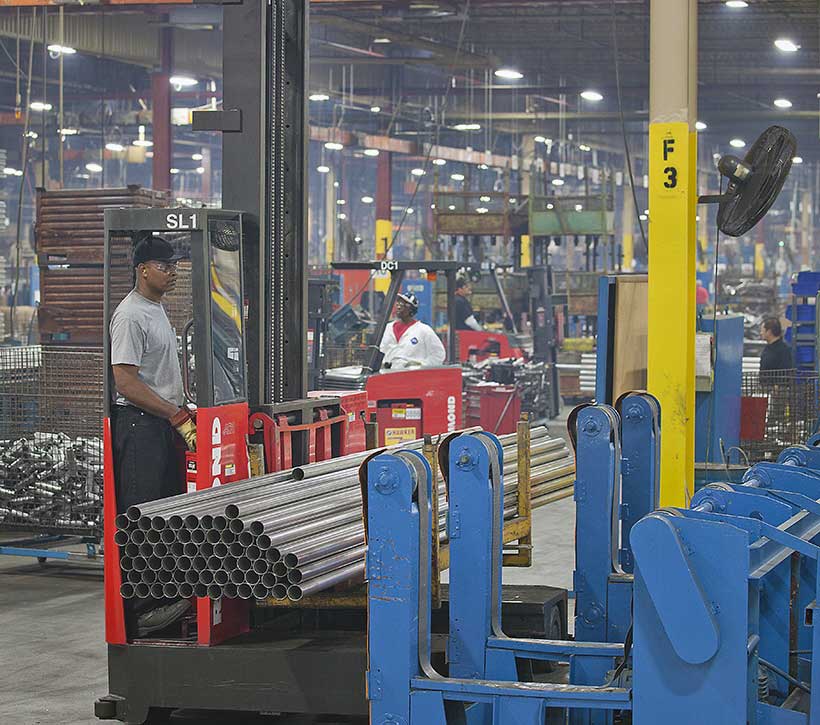

  • Raymond Sideloader Fork Tilt
    Raymond engineers productive lift trucks

    Fork Tilt

    Precision fork tilt provides greater load control to reduce product and rack damage.
    Fork Tilt

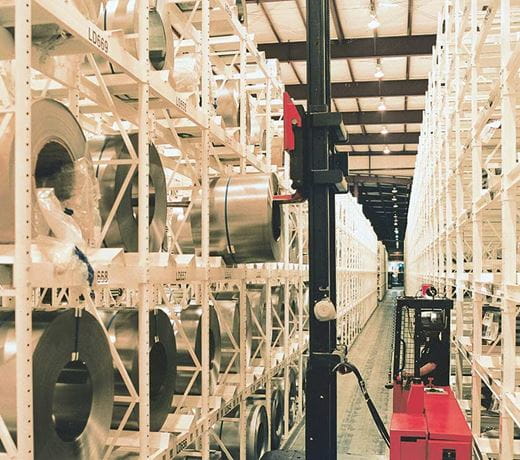

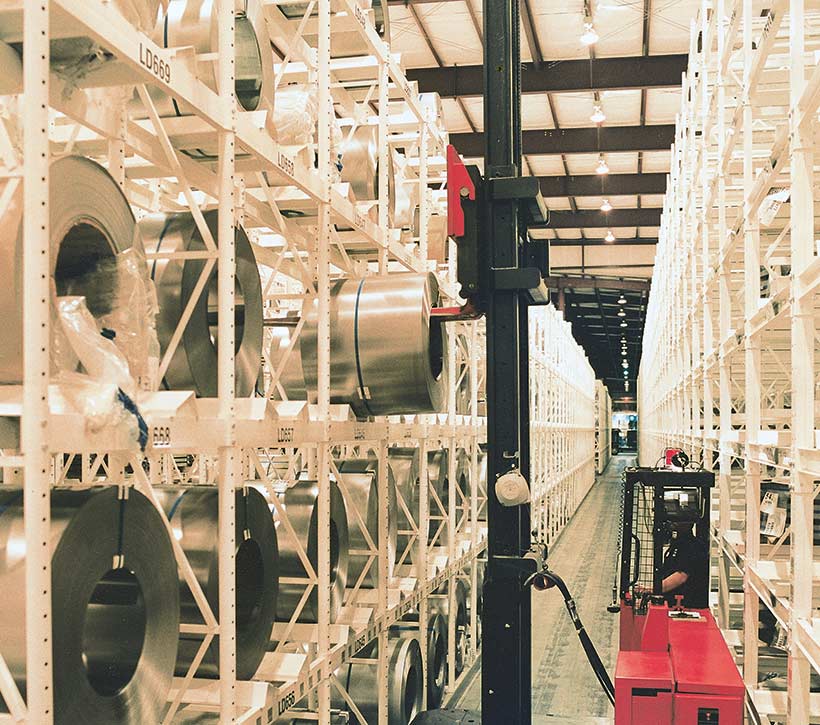

  • Raymond Sideloader Mast and Carriage Tilt Feature
    Raymond engineers productive lift trucks

    Mast and Carriage Tilt

    Provide maximum load control, in two or three stage mast configurations.
    Mast and Carriage Tilt

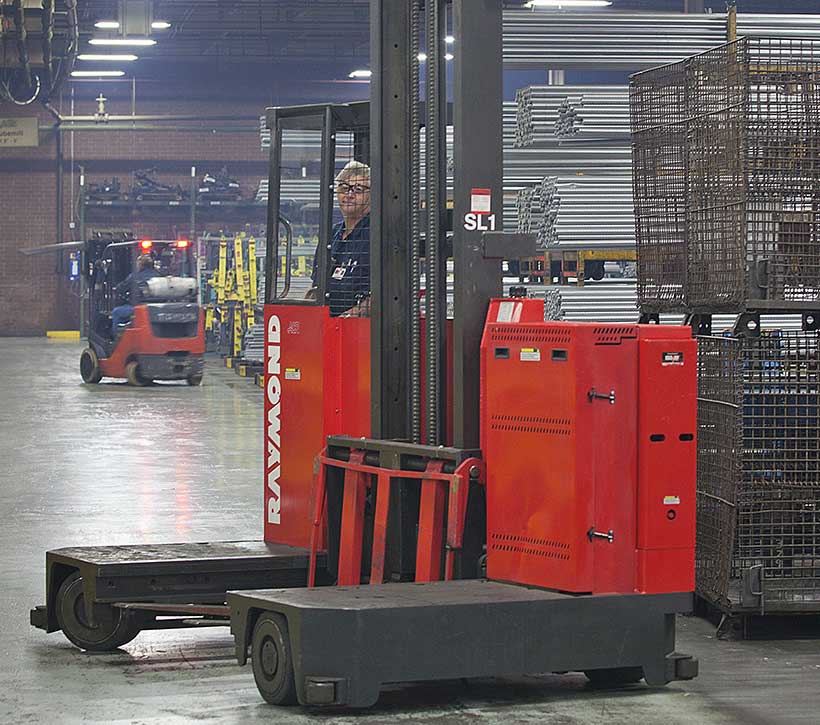

  • Raymond Sideloader long load forklift with powersteering
    Raymond ergonomic lift trucks

    PowerSteer

    Significantly reduces operator effort needed to steer the truck, for greater shift long comfort.
    PowerSteer

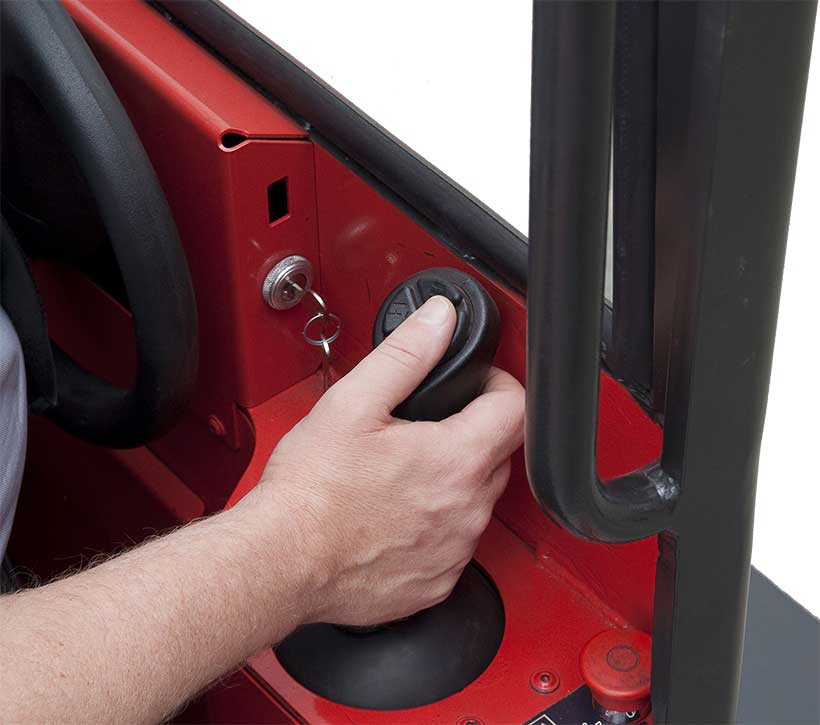

  • Raymond Sideloader Narrow Aisle truck with Variable Lift/Lower
    Raymond engineers productive lift trucks

    Variable Speed Lift/Lower

    A single knob controls both lift and lower functions, allowing complete and variable speed control.
    Variable Speed Lift/Lower

Versatile, Heavy-Duty Long Load Handling

The Raymond 9400 Sideloader truck is engineered to handle long, bulky loads with ease in narrow aisle storage and tight areas. It's ideal for handling long or bulky loads such as steel, bar stock, tubing, laminates, lumber or plywood - with stacking capabilities up to 30 feet high. Highly maneuverable and versatile, Raymond Sideloader long load forklifts make light work of your cumbersome loads.

Inquire
  • Battery: 48 volt
  • Capacity: 12,000 lbs
  • Elevated Height: 367" maximum

Built to Perform

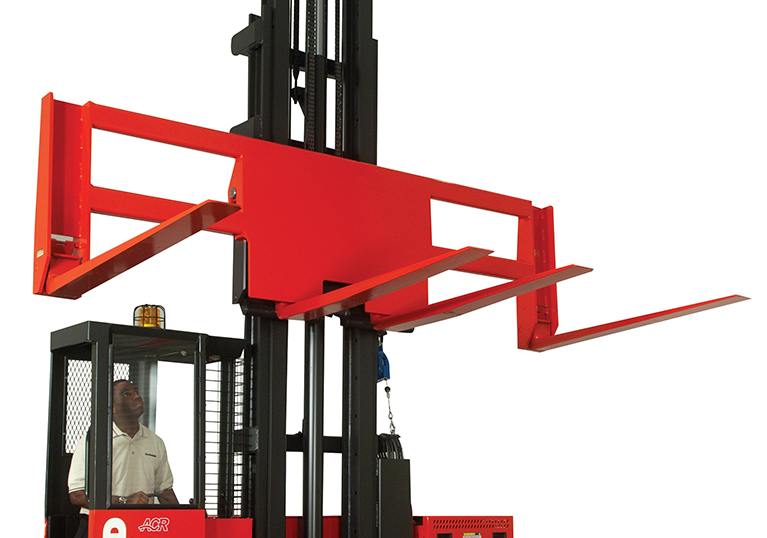

  • Raymond Sideloader Cushioned Mast Stops

    Cushioned Mast Stops

    Absorb shock to reduce product damage due to load jarring.

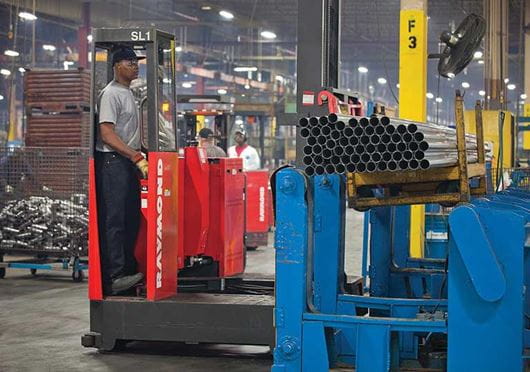

  • Raymond Sideloader Heavy Duty Load Capacity

    Heavy Duty Capacity

    The Raymond Sideloader offers heavy duty capacities up to 12,000 lbs to handle your long and bulky loads with ease in narrow aisle storage areas. From lumber to handling raw materials in manufacturing applications, our sideloaders are engineered to handle your heaviest loads, day after day, year after year.

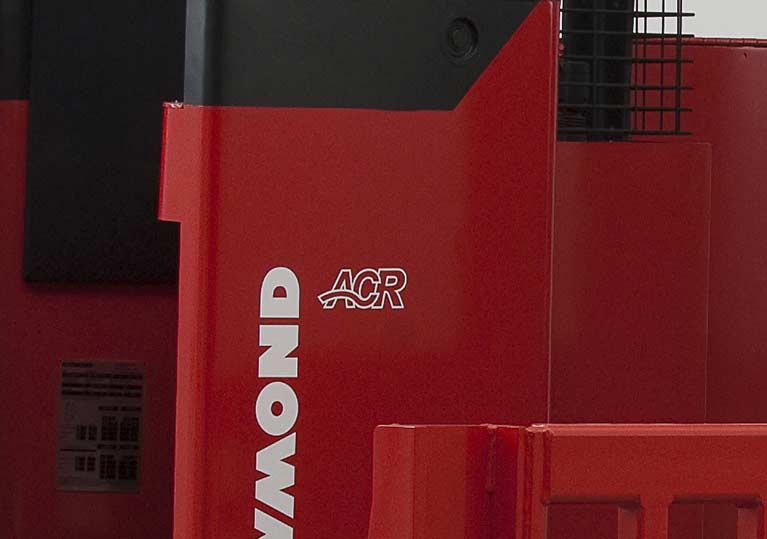

  • Raymond Sideloader ACR System

    ACR System

    Raymond's exclusive ACR System requires fewer battery changes and more uptime and lower energy costs. ACR delivers smooth handling while the 48 volt power unit maintains high performance throughout the battery cycle.

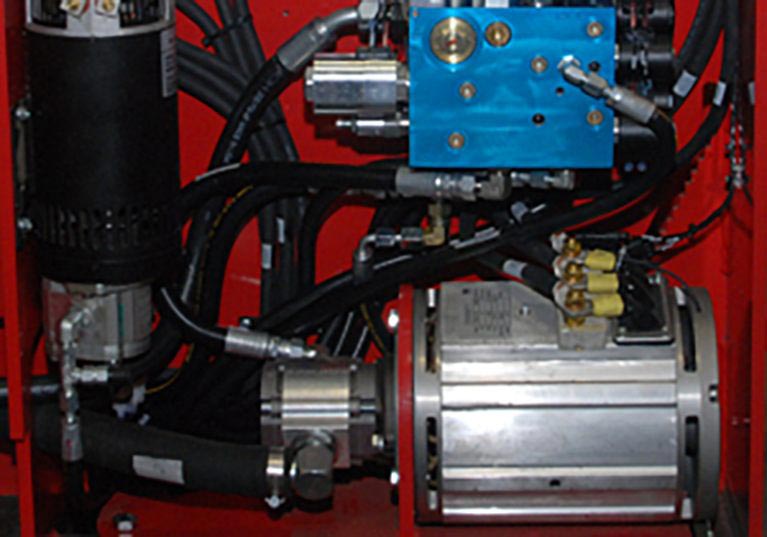

  • Raymond Sideloader Dual AC Drive Motors

    Dual Drive Motors

    Dual, independent drive motors provide power and positive traction to increase productivity.

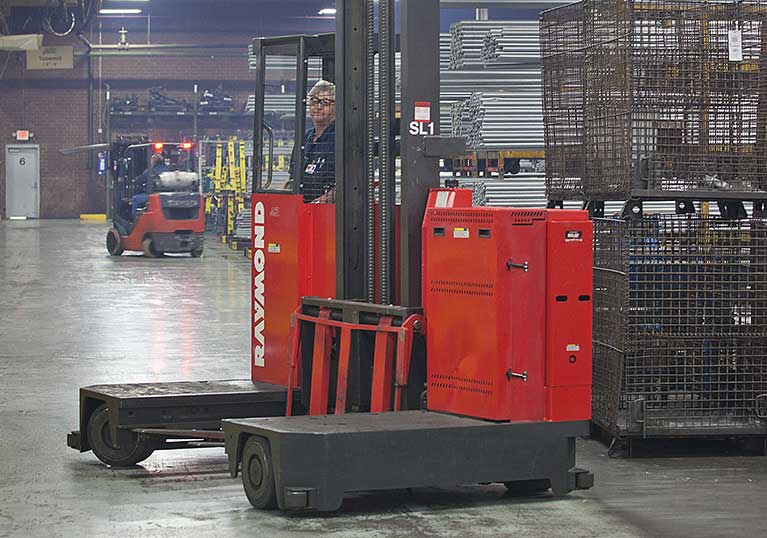

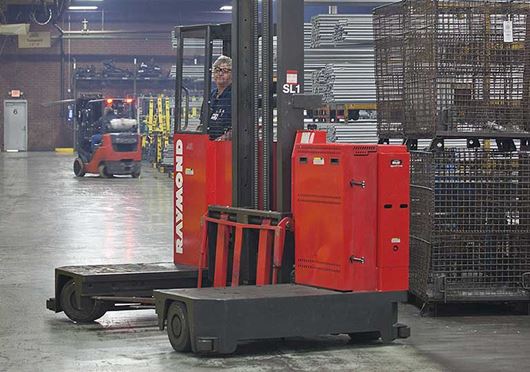

  • Raymond Sideloader Long Load Fork lift

    Faster Travel Speeds

    ACR delivers faster travel speeds and quicker acceleration for increased productivity - all while using less energy than comparable AC systems.

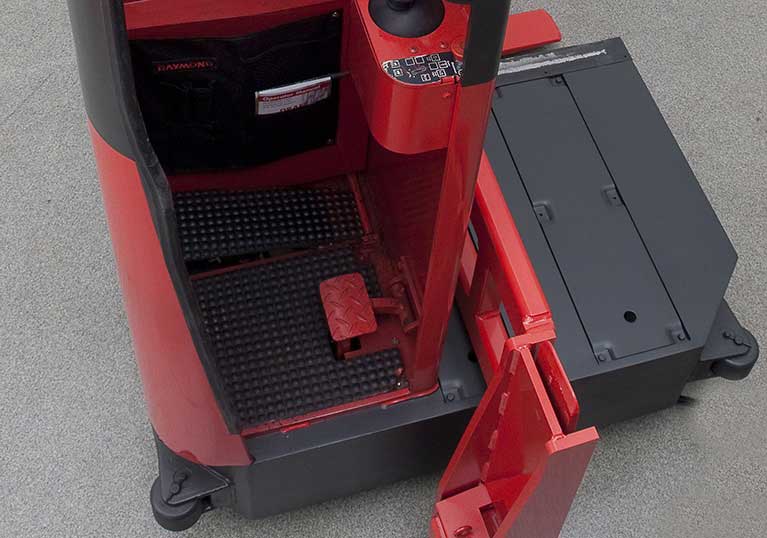

  • Raymond Sideloader Cushioned Floor mat

    Cushioned Floor

    A cushioned floor mat provides shift-long comfort.

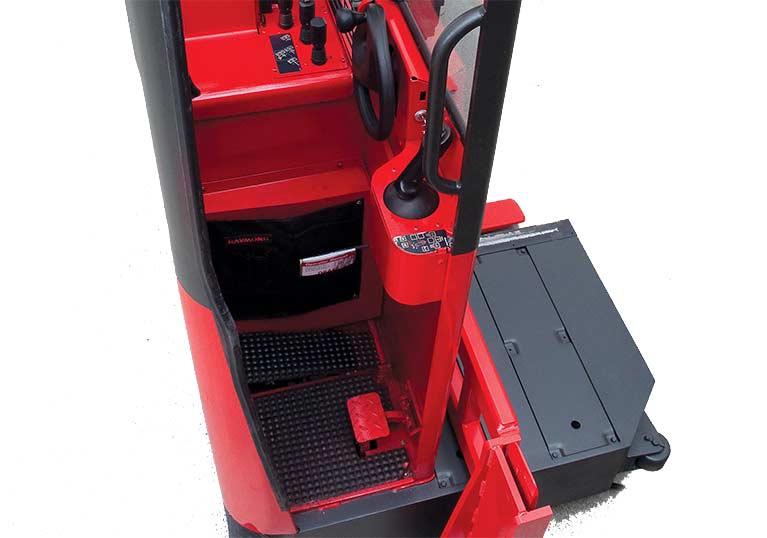

  • Raymond Sideloader Operator Compartment

    Ergonomic Compartment

    The roomy operator compartment provides multiple lean points, easy-to-reach controls that are ergonomically designed, and a clear view to the forks and load for enhanced operator comfort and productivity throughout the shift.

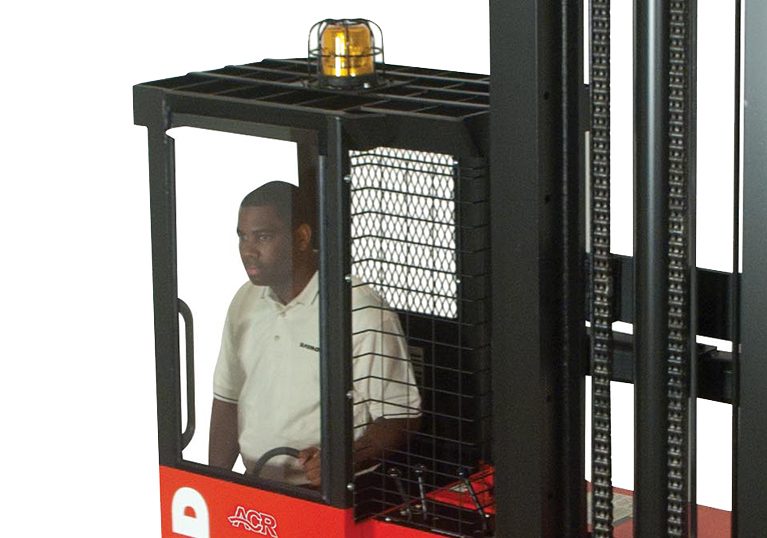

  • Raymond Sideloader Intuitive Control Handles

    Ergonomic Controls

    The single-axis control handle allows for comfortable, easy maneuvering of long loads in narrow aisles and tight work areas. The variable speed lift and lower provides precise load control and reduces load jarring.

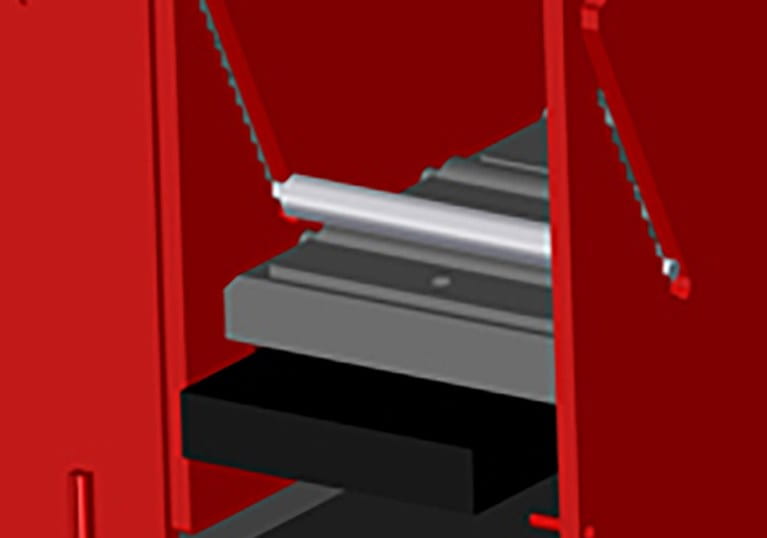

  • Raymond Sideloader Battery Rollers for Easy Change Out

    Battery Rollers

    The corrosion-resistant battery rollers facilitate quick battery changes to reduce downtime.

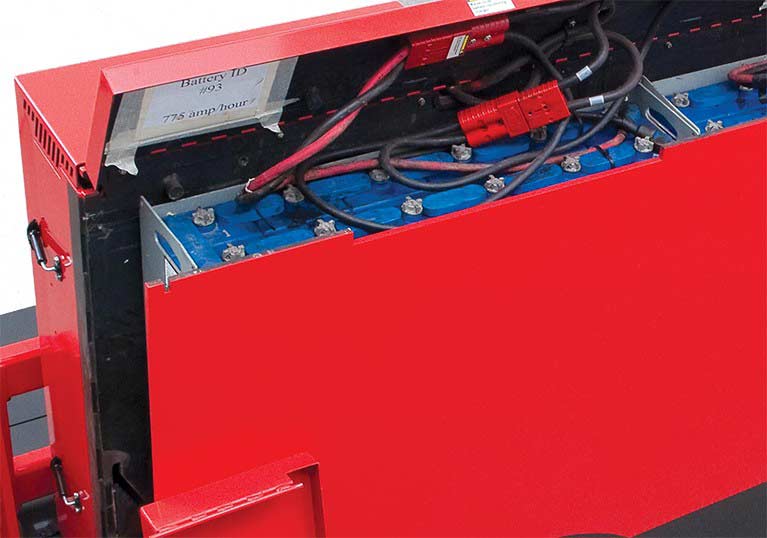

  • Raymond Sideloader Easy Battery Access

    Hinged Battery Cover

    Provides quick, convenient service access for battery inspection and removal.

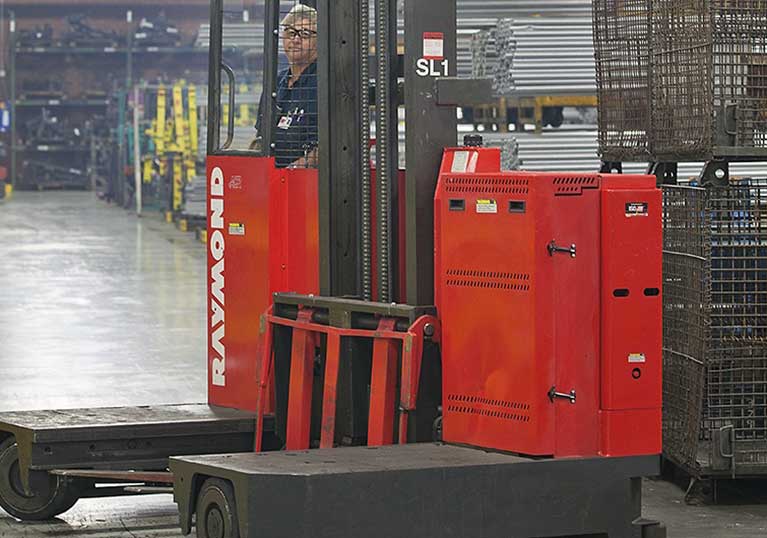

  • Raymond Sideloader Regenerative Braking

    ACR and Regenerative Braking

    Raymond's exclusive ACR System and the regenerative braking feature helps the Raymond Sideloader to run cooler, maximizing uptime and performance on a single battery charge.
  • Raymond Sideloader Auxiliary Fork Carriage Option

    Auxiliary Fork Carriage

    Long, flexible loads need additional support - such as laminate or plywood - can be easily handled with the Auxiliary Fork Carriage option. This feature provides two extra forks to handle longer loads, which simply fold up and out of the way when not needed.

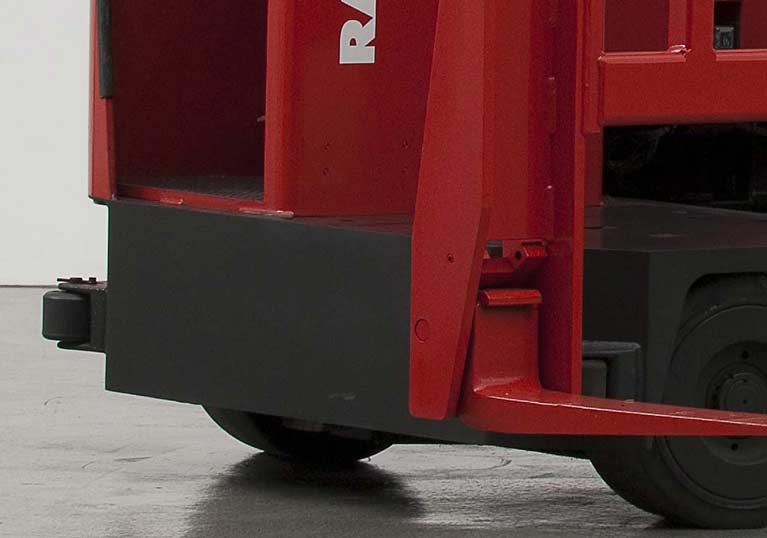

  • Raymond Sideloader Double Rail Guide Rollers

    Double Rail Guide Rollers

    Rail guidance allows optimal productivity in narrow aisle storage aisles by freeing up the operator from steering tasks, allowing them to fully focus on selecting the next load.

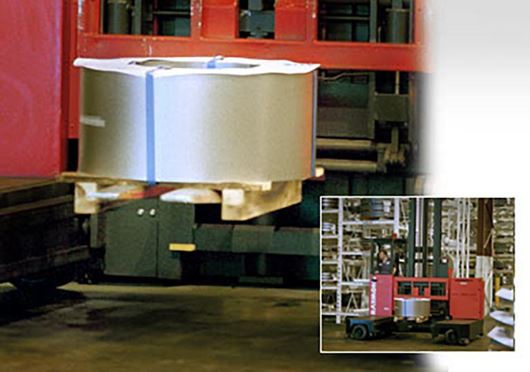

  • Raymond Sideloader Hydraulic Adjustable Forks

    Hydraulic Adjustable Forks

    This option allows the operator to adjust the width of the forks from 15" to 48" to move and store varying load widths quickly and easily.
  • Raymond 9300 Sideloader Long Load Forklift with Hydraulic Adjustable Forks

    Adjustable Forks

    Optional Hydraulic Adjustable Forks allow the operator to easily adjust the overall width of the forks from 15 inches to 46 inches in order to move and store loads of various widths quickly and easily.
  • Raymond Sideloader Long Load Fork Lift Auxiliary Fork Carriage for Long, Flexible Load Handling

    Auxiliary Fork Carriage

    Long, flexible loads needing additional support can be easily handled with the Auxiliary Fork Carriage option. This configuration provides two extra forks to handle the load; when not needed, the extra forks simply fold up and out of the way.
  • Raymond Sideloader Long Load Fork Lift optional bed lengths

    Bed Length

    Select from bed lengths in widths ranging from 51 inches to 60 inches to support a longer load as needed in your application.
  • Raymond Sideloader Rail Guidance

    Double Rail Guide Rollers

    This rail guidance configuration relieves the operator of steering duties in narrow aisles, improving productivity by allowing operators to fully focus on selecting the next load.
  • Raymond Sideloader Optional Work Lights

    Work Lights

    Optional work lights help to provide proper lighting for the work area and task at hand. Travel lights enhance operator visibility by illuminating the travel path. Warning, flashing or rotating lights are available in various colors for use in areas with high pedestrian activity.
  • Long Load Handling

    Whether you are handling furniture, bar stock, tubing, lumber or other long and bulky loads, Raymond Sideloader long load forklifts can increase your storage space by up to 40%. With a wide range of trucks built for specific Long Load Handling needs, it's easy to maximize your space utilization and productivity with Raymond.

  • Palletless Handling

    Whether you are moving furniture, carpeting, steel, cartons or other palletless loads, Raymond has the answer. Raymond sideloader long load forklift trucks are an ideal option to maximize space utilization, decrease damage to inventory and increase productivity with palletless handling.

  • Specialty Racks

    Sideloader lift trucks can interface with cantilever warehouse racks. It's another Raymond solution that will help maximize your storage capacity and productivity.

  • Narrow Aisle Storage

    Raymond introduced the first electric narrow aisle straddle truck in 1951, revolutionizing the material handling industry. With over 200 combinations of heights, features and capacities, Raymond sideloader trucks provide narrow aisle storage and offer superior versatility and long load handling solutions, each improving the utilization of your warehouse space.

  • UL EE Construction

    This lift truck complies with Underwriters Laboratories (UL) 583. Raymond® Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
