9800 Swing-Reach Articulated Forklift
-
-
Advanced Lifting System
A combination of hydraulic and gas-pressure lifting for smooth operation and lower energy usage.Advanced Lifting System -
Articulated Steering
Navigates between aisles in less than 10 seconds using a transfer aisle up to 3 feet narrower than non-articulated trucks.Articulated Steering -

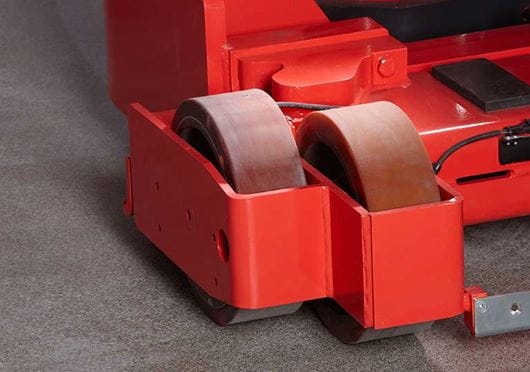

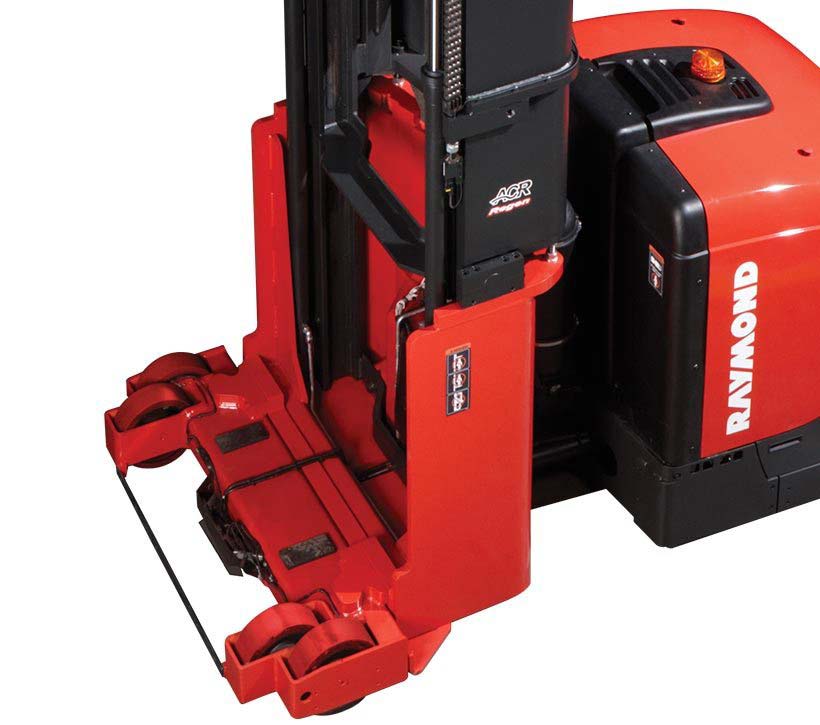

Dual-Drive Four-Wheel Design
Provides ultimate stability for class-leading lift capacities, reduced floor loading and a smoother ride.Dual-Drive Four-Wheel Design -

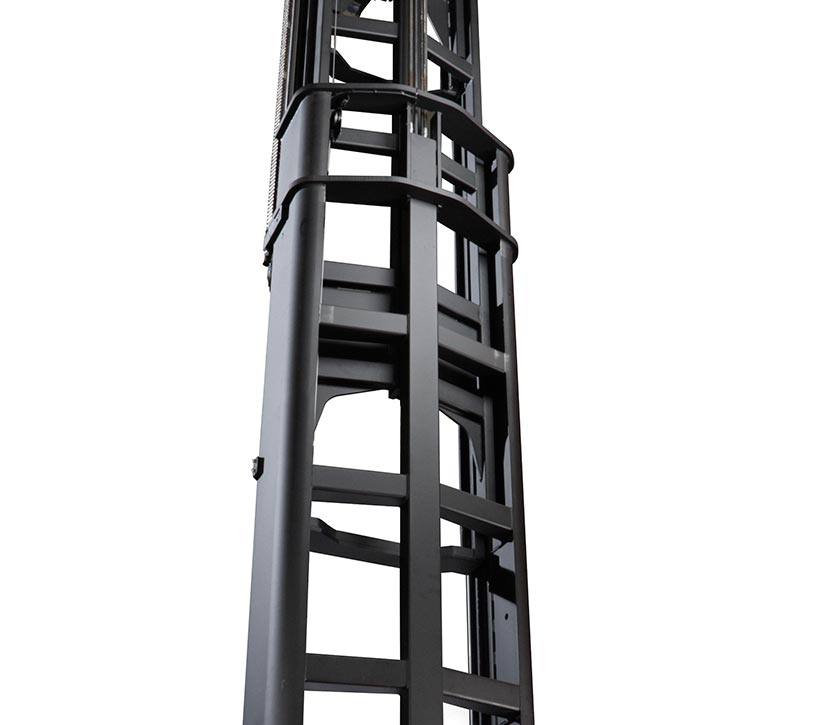

Massive and Rigid Triplex Mast
Provides ultimate stability and can lift 2,500 lbs. to nearly 50 feet.Massive and Rigid Triplex Mast -

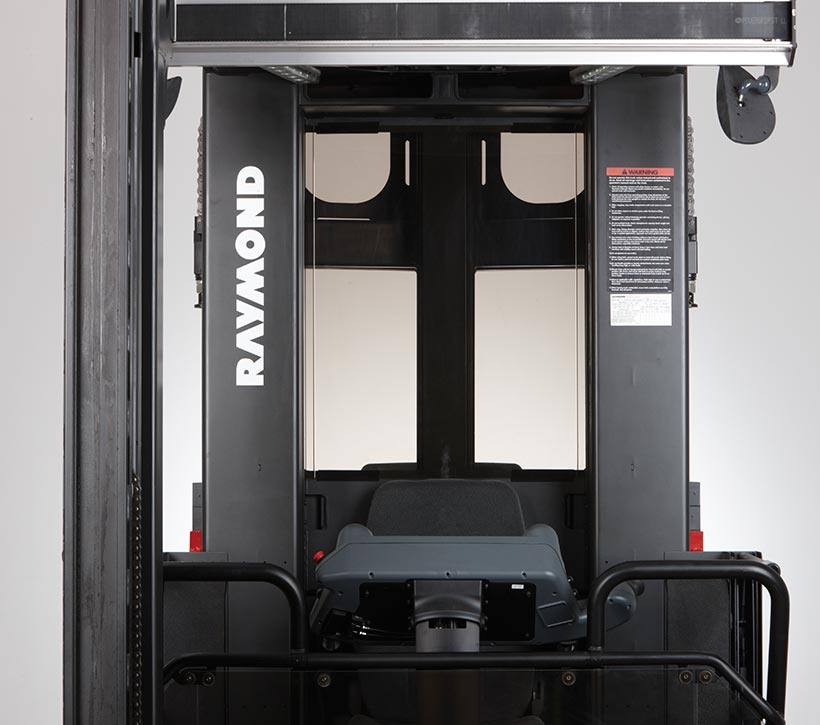

Clear View Mast
A triplex mast with low collapsed heights and no cables or hoses to clutter it up provides excellent visibility in every direction.Clear View Mast
Watch your Space Multiply

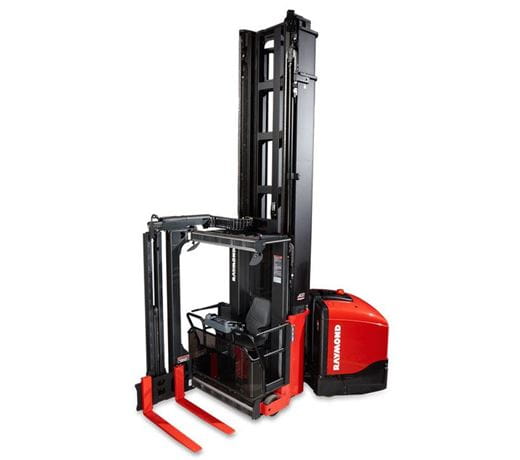

The Raymond 9800 Swing-Reach truck offers a whole new level of productivity and energy efficiency, utilizes spaces more effectively, and sets a new standard for driving down costs. This Swing-Reach turret truck has been engineered with stability and maneuverability to take your warehouse to the next level.
- Battery: 48 volt
- Capacity: 2,500 lbs to nearly 50 feet; 3,300 lbs to 30 feet
- Elevated Height: 584" maximum
- Overall Width: 60"
A Turret Forklift Built to Perform
-

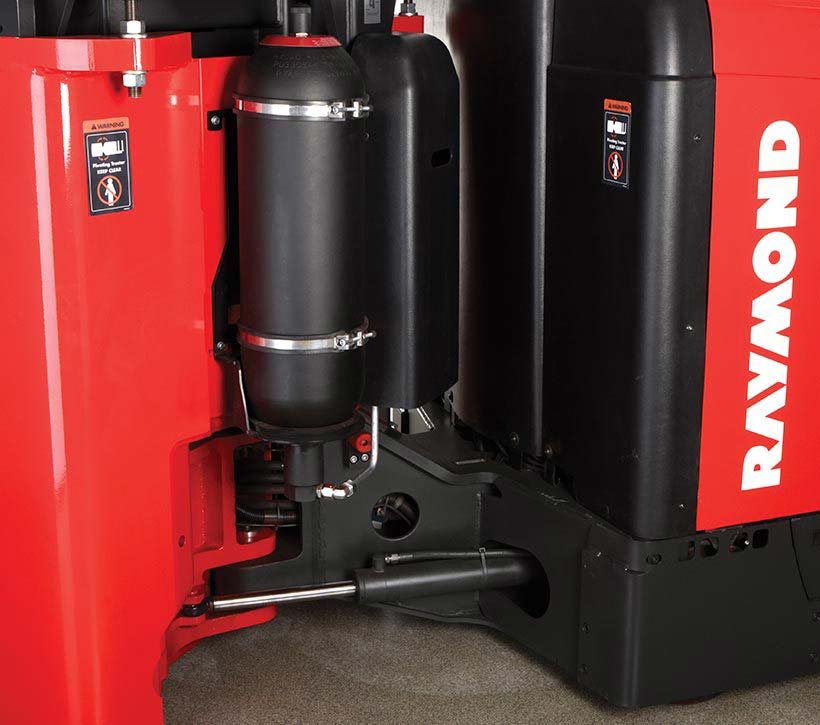

ADVANCED LIFTING SYSTEM
This fully integrated combination of hydraulic and gas-pressure lifting for smooth operation results in 40% less energy used than many competing models. -

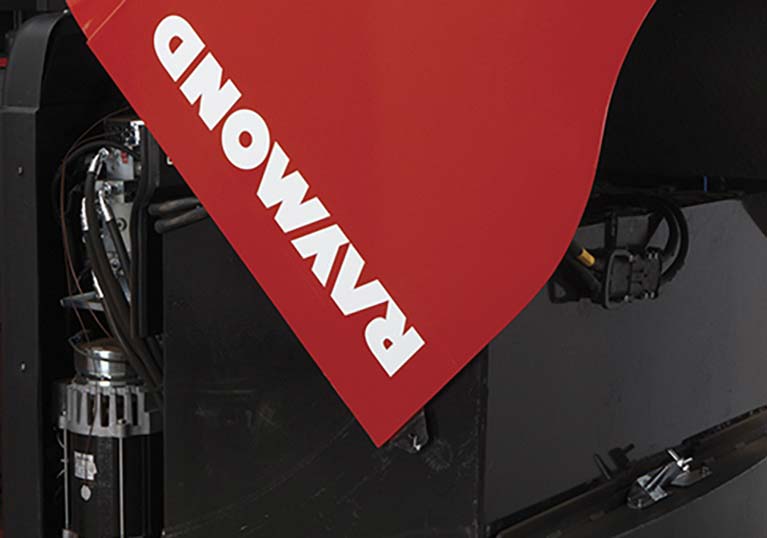

ENERGY EFFICIENT
A 48-volt system provides main lift speed up to 88 feet per minute compared to competitor 72- and 80-volt trucks. This allows for a smaller lift motor, which reduces heat loss and enables users to run as long as two shifts on one battery charge. -

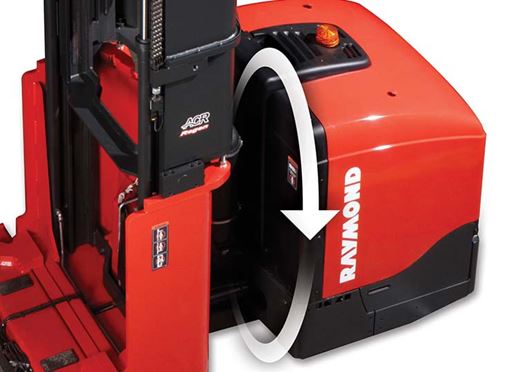

REGENERATIVE LOWERING
A standard feature of the 9800 Swing-Reach turret truck, regenerative lowering creates power by returning it directly to the battery, resulting in fewer battery changes and reduced downtime.
-

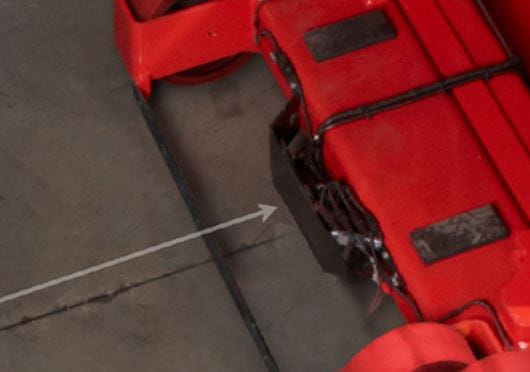

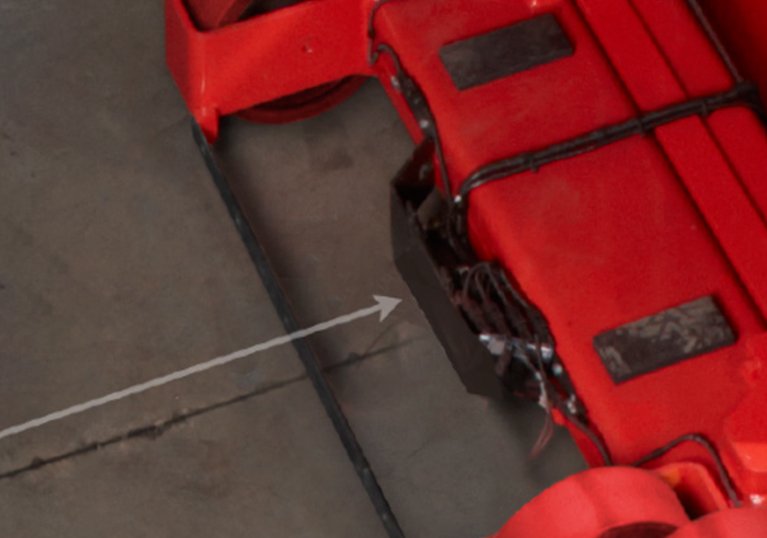

INTELLIGUIDE AND WIRE GUIDANCE
This no-tune system offers excellent tracking and eliminates the need for steering in aisles, reducing product, truck and facility damage while increasing operator productivity. -
INTELLISPEED
Optimizes travel speed at height by providing smooth coordination between speeds based on load height and weight. -

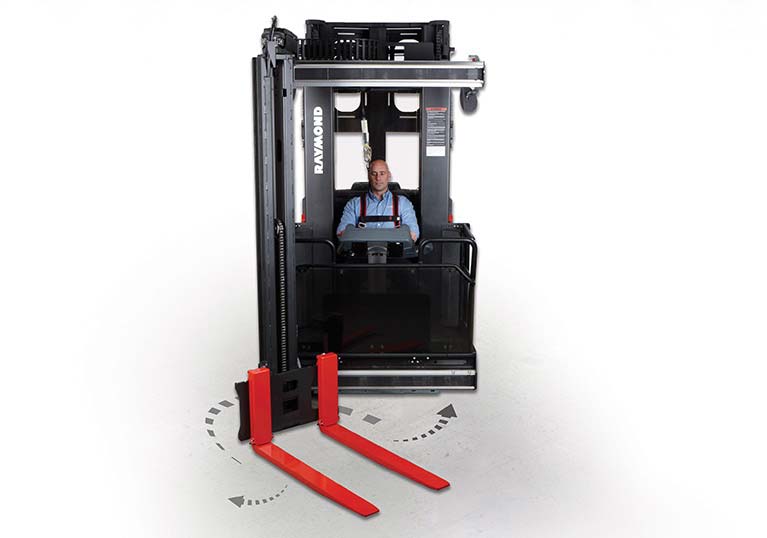

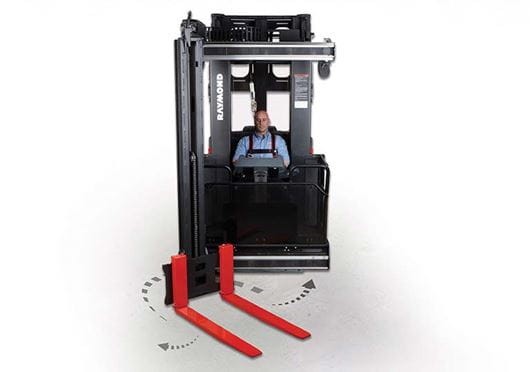

AUTO TRAVERSE AND ROTATE
Improves productivity by automatically synchronizing the traverse and rotate movements to keep the forks within the aisle when re-positioning.
-

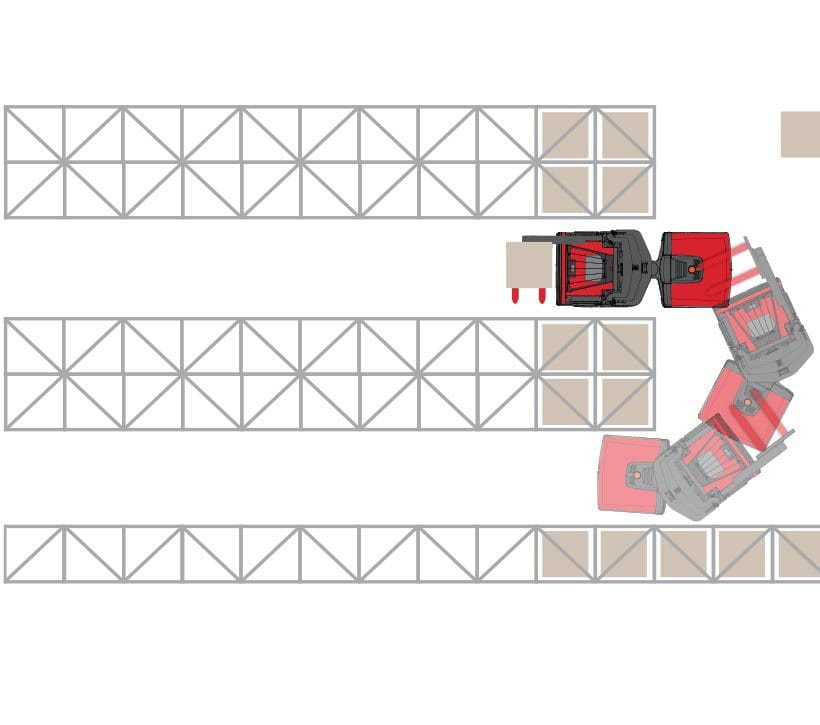

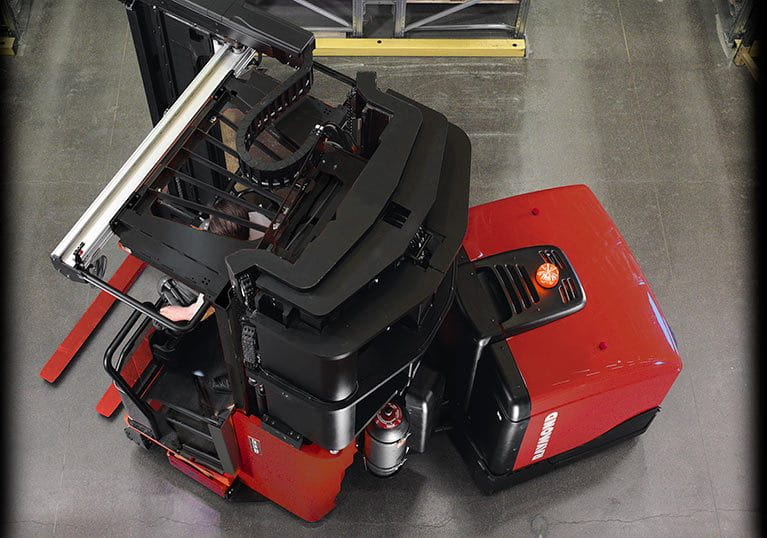

ARTICULATED STEERING
Enables the truck to maneuver easily through 13-foot intersecting aisles with a 50-inch load and is easy to drive in 'free-ranging' conditions when outside of the storage aisle. -
QUADSET BOLT-ON LOAD WHEELS
The staggered front bolt-on load wheel design allows the truck’s overall frame width to be easily changed, allowing flexibility to accommodate various aisle widths. -

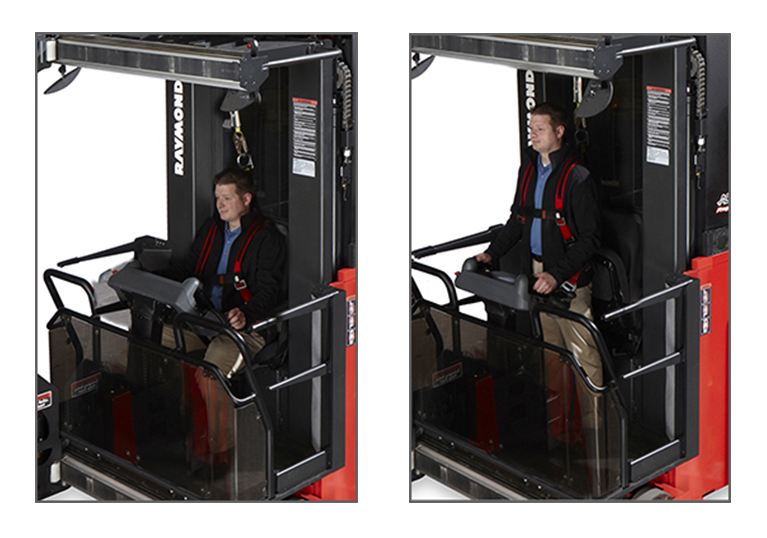

OPERATING POSITIONS
A variety of driving positions encourages movement within the operator’s compartment, providing postural relief while allowing travel both forks first and tractor first.
-

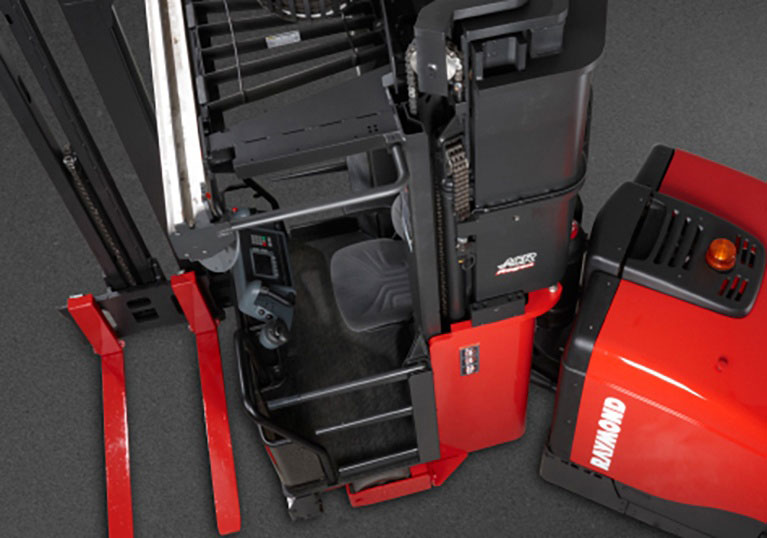

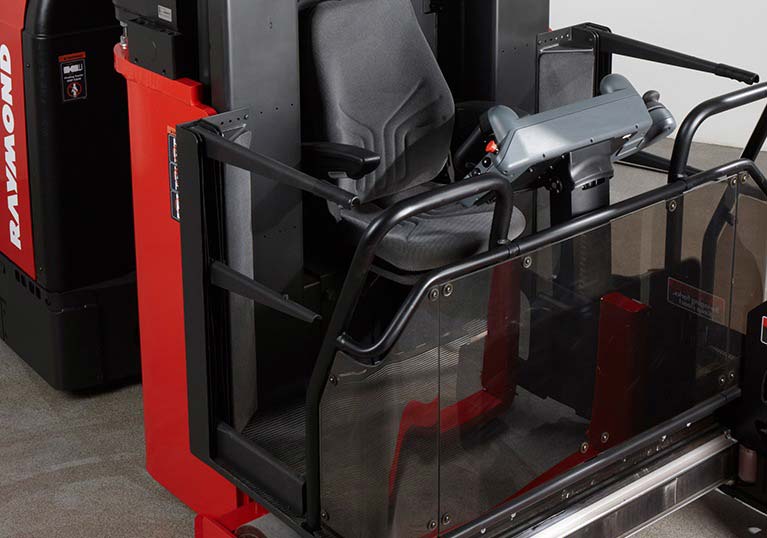

COMFORTABLE COMPARTMENT
Features an adjustable, plush padded seat with a flip-up mechanism for driving in the standing position. -

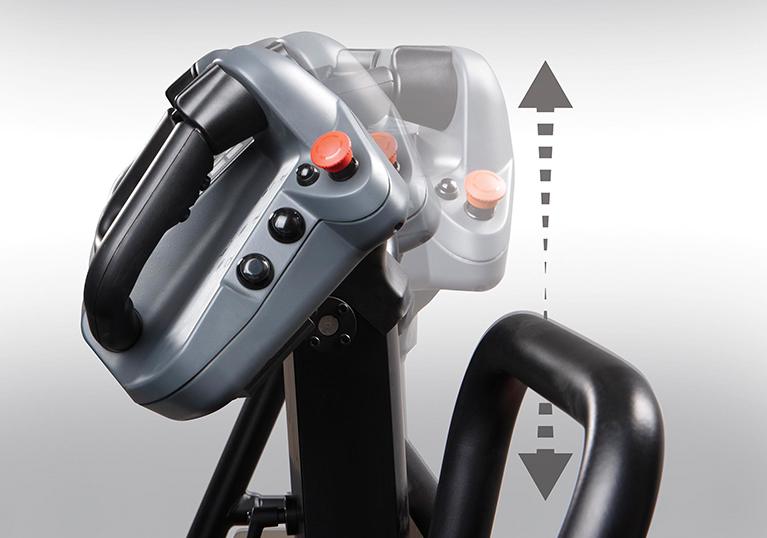

INTEGRATED CONTROL PANEL
The fully adjustable integrated operator’s control panel has intuitive simultaneous function controls, for ease of learning, enhanced comfort and improved operator productivity. -

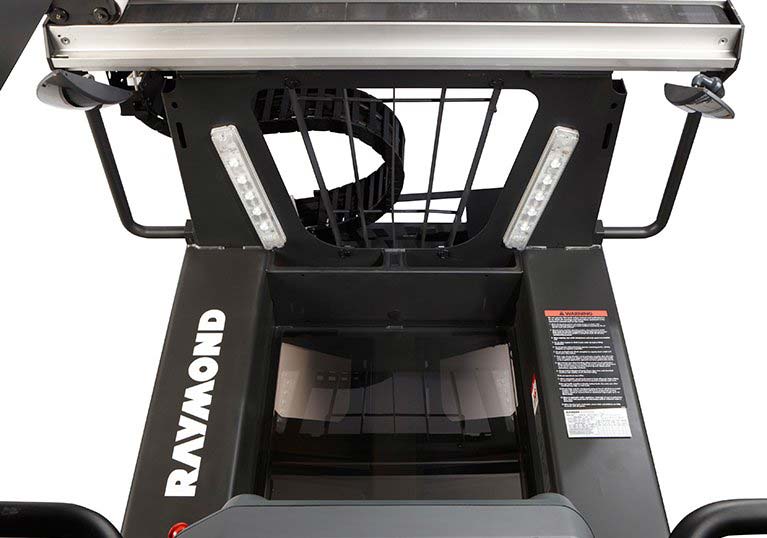

LIGHT AND FAN PACKAGE
LED compartment and picking lights offer efficient lighting and a cooling fan provides air circulation for enhanced comfort when operating in increased temperatures at higher elevations.
-

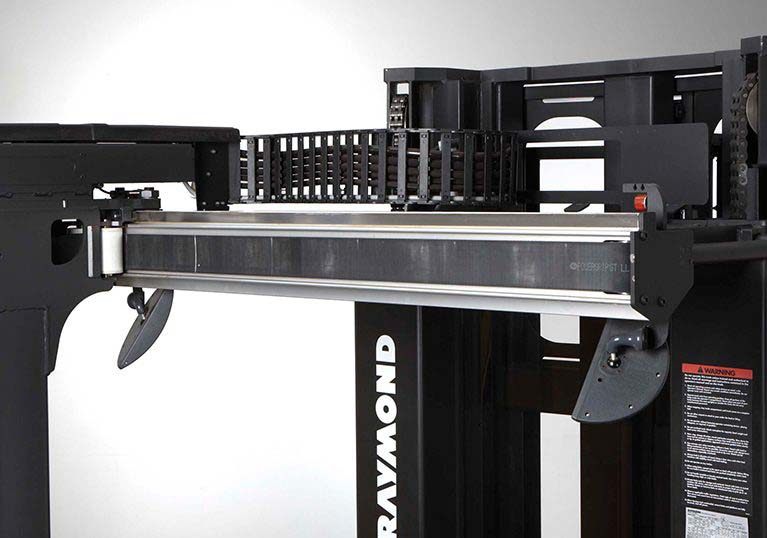

ADVANCED BELT DRIVE
Provides fast fork traverse that automatically adapts to load weight and reduces lubrication requirements. -

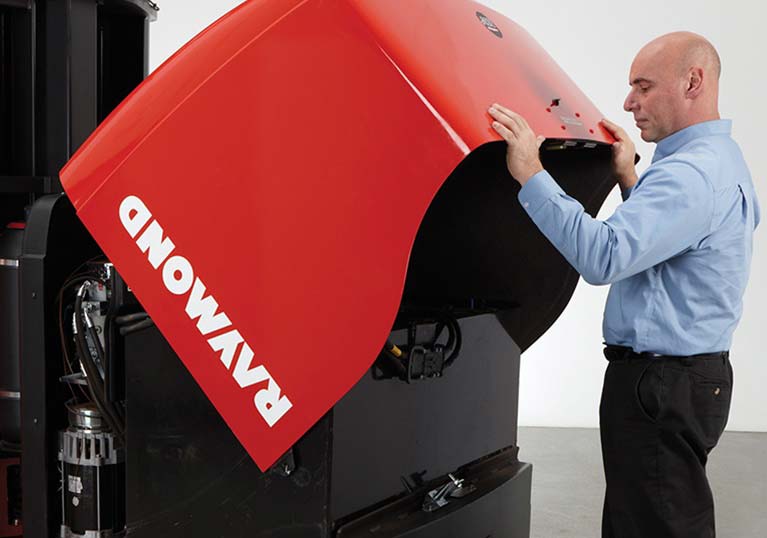

EASE OF ACCESS
From the durable, easily removed cover to the intuitive controls and layout of components, you’ll experience less downtime with ease of access and reduced time to repair.
-
Cold Storage Conditioning
Refrigerated warehouses and other cold storage facilities are tough environments to work in. Our innovative design and robust systems take on below freezing temperatures by protecting sensitive control systems with hydraulic, mechanical, and electrical components that are matched to different temperature levels to assure peak performance.
-

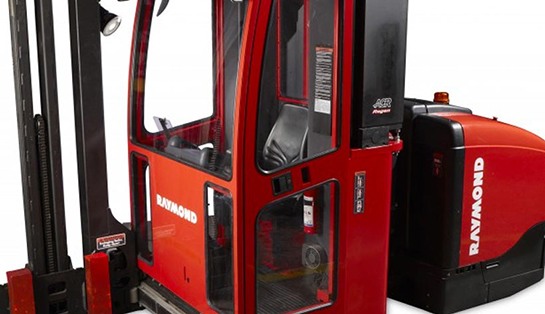

Enclosed Operator's Compartment
The enclosed cab provides a warm work environment for operators working in cold storage facilities. Featuring sliding doors on both sides of the platform for entering and exiting the vehicle, and double pane thermal glass is used on all 4 sides of the cab to provide good visibility in all directions as well as to contain the heat in the cab.
-
Vertical Hold
Offers operators assistance in storing and retrieving loads from frequently referenced rack heights. Vertical Hold allows the operator to select from up to 199 programmable preset lift heights, using the reach and retract control handle buttons.
-

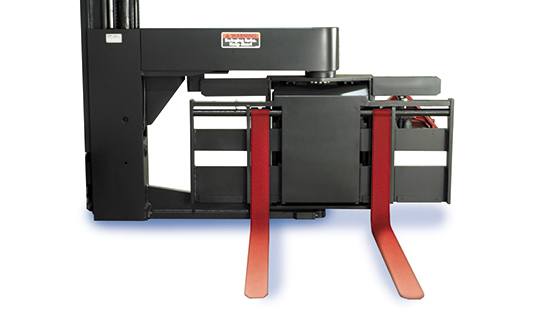

Extended Turret
Extended turret options are available to accommodate loads as large as 48 inches deep by 110 inches wide; aisle widths will vary based on the size of the load.
-

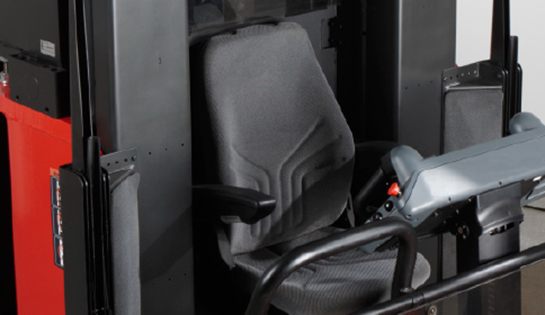

Heated Seat
The optional heated seat enhances operator comfort throughout the shift by providing some relief from the cold of freezer applications. Heaters are thermostatically controlled to shut off when the truck is being operated in non-freezer, ambient environments.
-
Fork Positioner/Fork Tilt
The fork positioner option allows forks to be adjustable to an increased or decreased overall width, providing easier movement and storage of multiple width loads, with less possibility of product damage. Applications utilizing live racking can improve cycle times and reduce product damage with the integrated fork tilt unit. With an adjustable tilt angle of 4 degrees, operators can more precisely pick and put away loads.
-

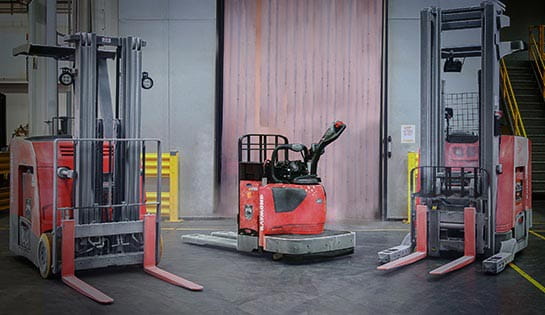

Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage facilities require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing. Raymond Swing-Reach trucks can be equipped with cold storage conditioning and heated cab options to enhance operator comfort in cold storage warehouses.
-
High Level Order Picking
Boost throughput and pick rates with reliable, high performance Raymond Swing-Reach turret trucks. Lifting greater capacities to higher heights means greater order picking productivity for your operators. And, we can customize our vast selection of Swing-Reach trucks, including lift heights and performance packages to meet very narrow aisle needs and order picking requirements.
-
High Rack
Engineered to lift heavy loads higher in a highly compact footprint, and to improve speed and efficiency in operations. This truck is suited for most existing very narrow aisle operations, and has the capacity to lift 3,300 pounds to 30 feet, and 2,500 pounds to nearly 50 feet.
-
Very Narrow Aisle

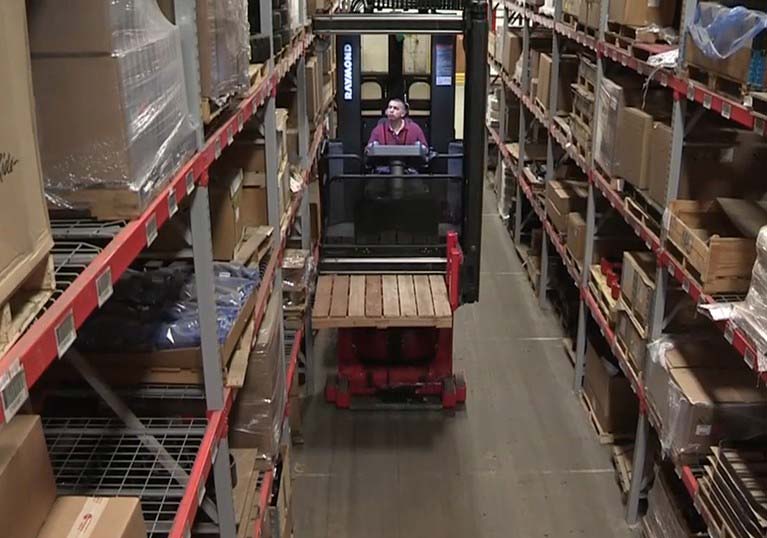

With over 200 combinations of heights, features and capacities, Raymond's family of very narrow aisle forklifts and swing-reach trucks offer superior versatility and effective solutions, each improving the utilization of your warehouse space. The 9800 Swing-Reach truck can operate in an aisle as narrow as 60 inches.
-
Raymond 9800 Swing-Reach Truck: Lift Heavy Loads Higher
Lift heavy loads higher in a highly compact footprint. With exceptional maneuverability and an energy efficient design, the 9800 turret truck offers a whole new level of productivity and energy efficiency, utilizes spaces more effectively, and sets a new standard for driving down costs. This Swing-Reach truck has been engineered to take your very narrow aisle warehouse to the next level.
-
Raymond's intelliguide™ Wire Guidance System
Raymond's intelliguide is a proven, reliable system for customers who are looking to maintain or improve profitability in their warehouse operations through better management of space, equipment, and people. Raymond's patented intelliguide system provides no-tune wire guidance with excellent tracking and stability for very narrow aisle forklifts.
